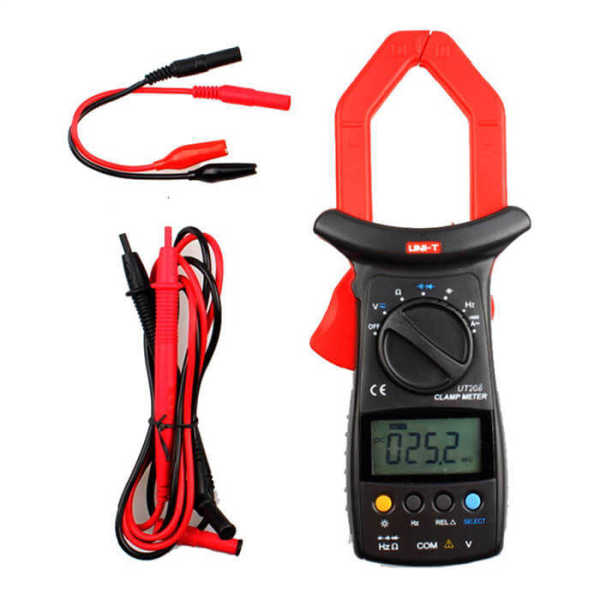

UNI-T UT-206 A PENSAMPERMETRE
0,00 TL
| Specifications | ||
| Model | UT206A | |
| AC Current (A) | 400A/1000A | ±(1.5%+5) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) |
| Temperature (°C) | -40 °C～1000°C | ±(2%+8) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 40mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| LCD Backlight | √ | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 37mm X 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 350g | |
| Product Size | 236mm X 97mm X40mm | |
| Standard Accessories |
Battery, Test Lead, Carrying Bag, Point Contact Temperature Probe |
|
| Standard Individual Packing | Gift Box, English Manual | |
|
Temel Fonksiyonlar |
Ölçüm Aralığı |
Best Accuracy |
|
DC Voltaj |
400mV/4V/40V/400V/600V |
(0.8%+1) |
|
AC Voltaj |
4V/40V/400V/600V |
(1.2%+5) |
|
AC Akım |
400A/1000A |
(1.5%+5) |
|
direnç |
400W/4kW/40kW/400kW/4MW/40MW |
(1%+2) |
|
Sıcaklık (oC) |
-40oC~1000oC |
(2%+8) |
|
frekans |
10Hz~10MHz |
(0.1%+3) |
|
Özel Fonksiyonlar |
|
|
|
Ranging Otomatik |
|
+ |
|
diyot |
|
+ |
|
Süreklilik Buzzer |
|
+ |
|
Bağıl Modu |
|
+ |
|
Veri tutun |
|
+ |
|
Ekran Arkadan ışıklandırma |
|
+ |
|
Simge Tam Ekran |
|
+ |
|
Uyku Modu |
|
+ |
|
Düşük Pil Göstergesi |
|
+ |
|
Giriş Empedansı |
Around 10MW |
+ |
|
DC Gerilim Ölçümü |
3999 |
+ |
GENEL ÖZELLİKLER
|
güç |
9V Battery (6F22) |
|
LCD Boyutu |
37 x 18mm |
|
Ürün Renk |
Red and Grey |
|
Ürün Net Ağırlığı |
350g |
|
Ürün Boyutu |
236 x 97 x 40mm |
